Heavy Peaches 🍑 thicc silicon fuzz
A WINDOW-RATTLING FUZZ CANNON
WHAT: 2-transistor silicon fuzz with input filter & master volume.
INSPIRATION: We unearthed Vox built-in amp and guitar fuzz modules meant for silicon- now modernized and modified for a heavy, yet smooth fuzz!
CIRCUIT SAUCE: Hand-picked low and medium gain transistors, sorted to give sustain and cleanup at your fingertips (guitar volume). Fuzz intensity set just below max. Low pass filtering of unwanted noise and a selectable high pass filter for fuzz flavor.
SOUND: Heavy, sustaining fuzz or a brighter, more vintage fuzz. This fuzz likes to be 1st in the signal chain, or at least before any buffer to preserve the cleanup effect.

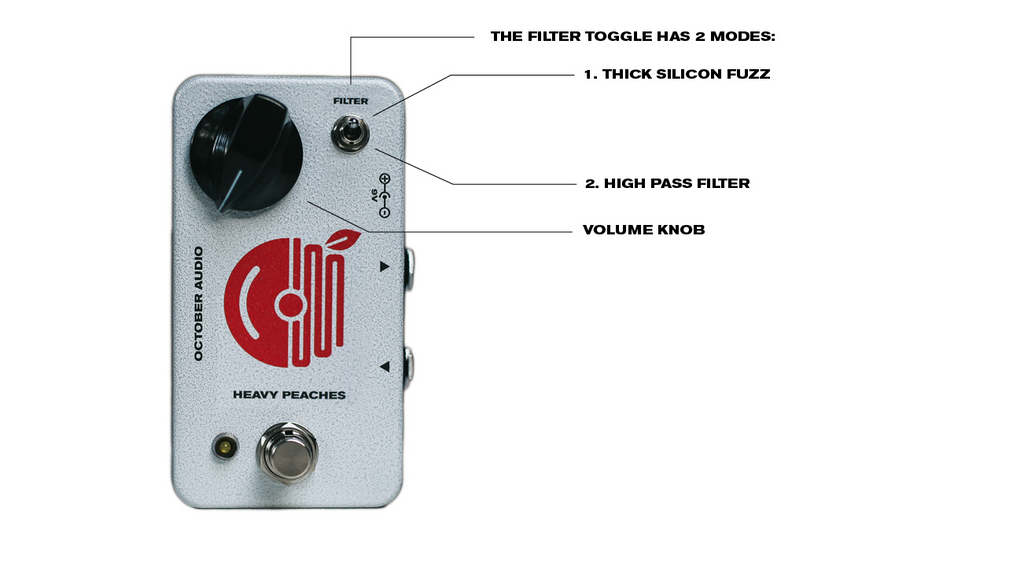

Filter Toggle: Up position- thick silicon transistor fuzz; Down position- less saturated fuzz with a bass cut that simulates a treble boost.

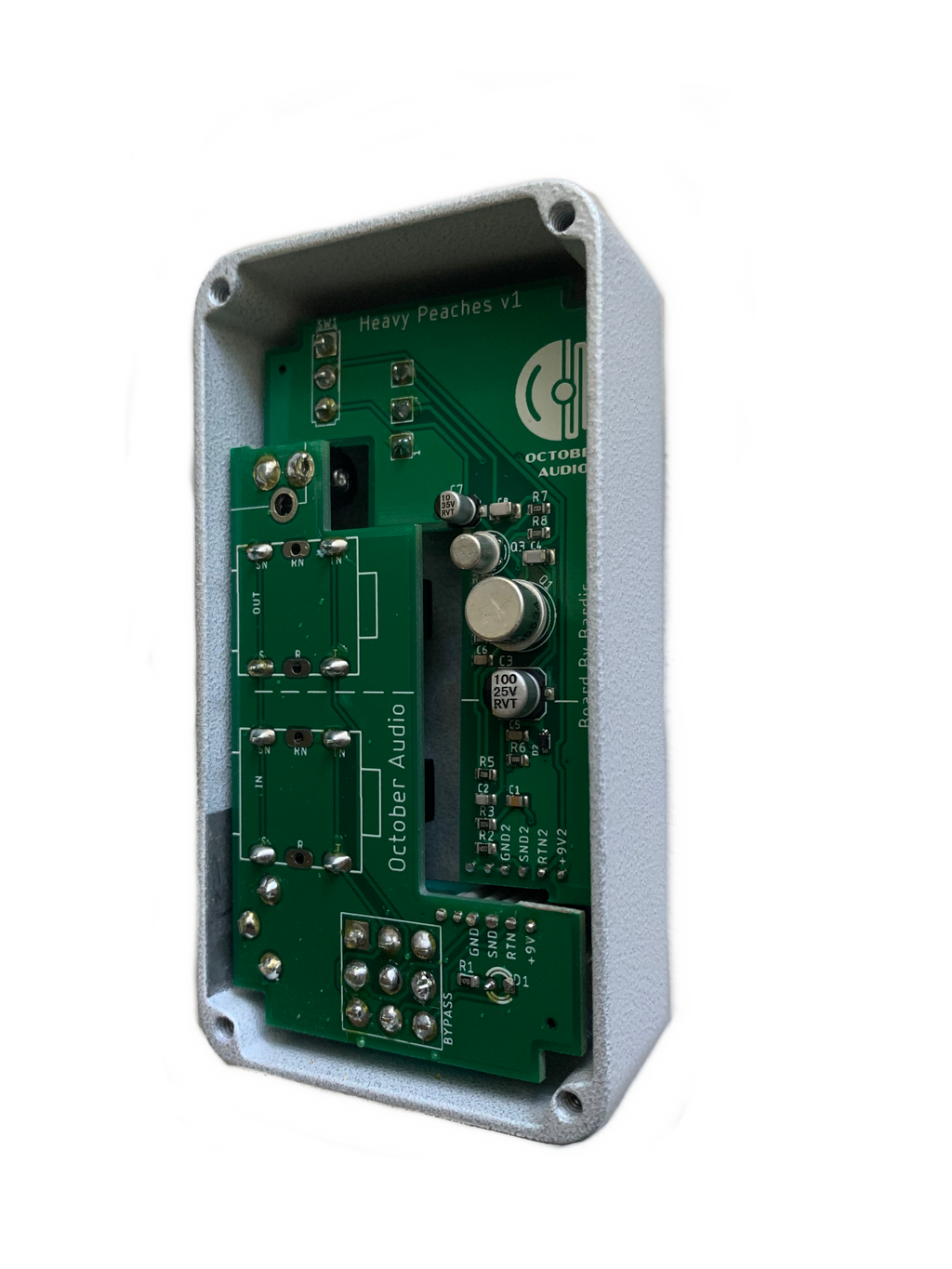

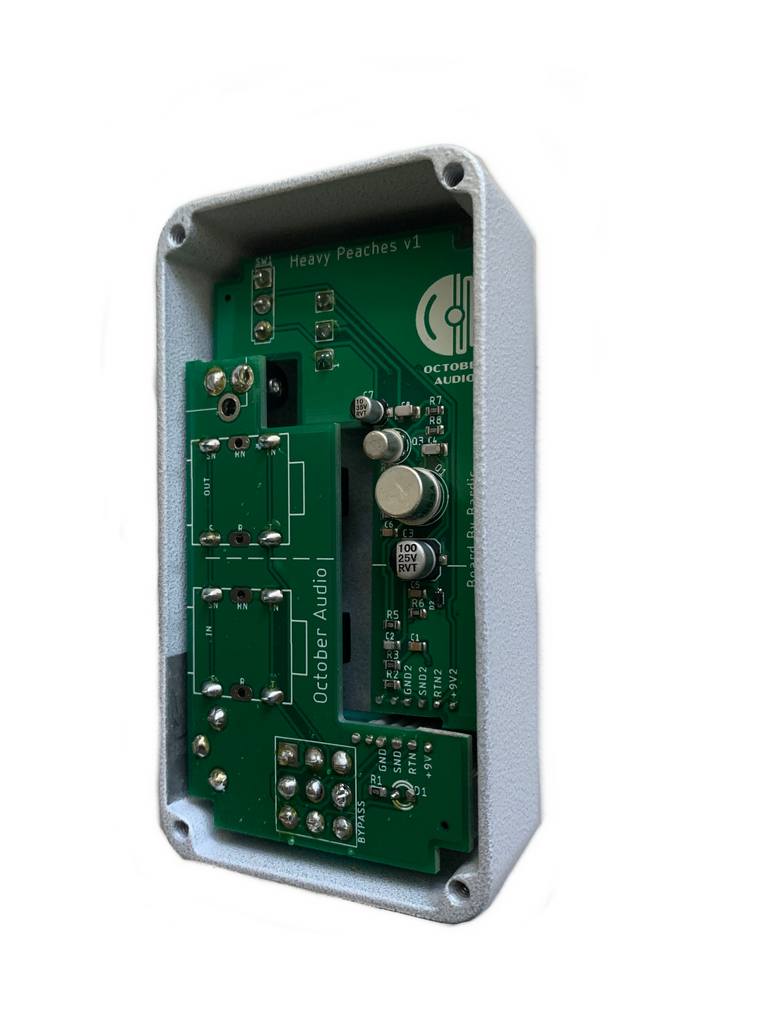

Made with silicon transistors sorted for gain and bias- a combination of 2n3053 and 2n2222A 🍑
Austere design, esoteric nomenclature.
- 9V center negative power supply, no battery
- Current draw: 2mA
- Dimensions: 4.38 x 2.38 x 1.94 in
- Knob controls master volume
- Toggle switches between a thick fuzz (Heavy) or a treble-enhanced fuzz (Peaches)
Make a video, maybe it will end up here!
