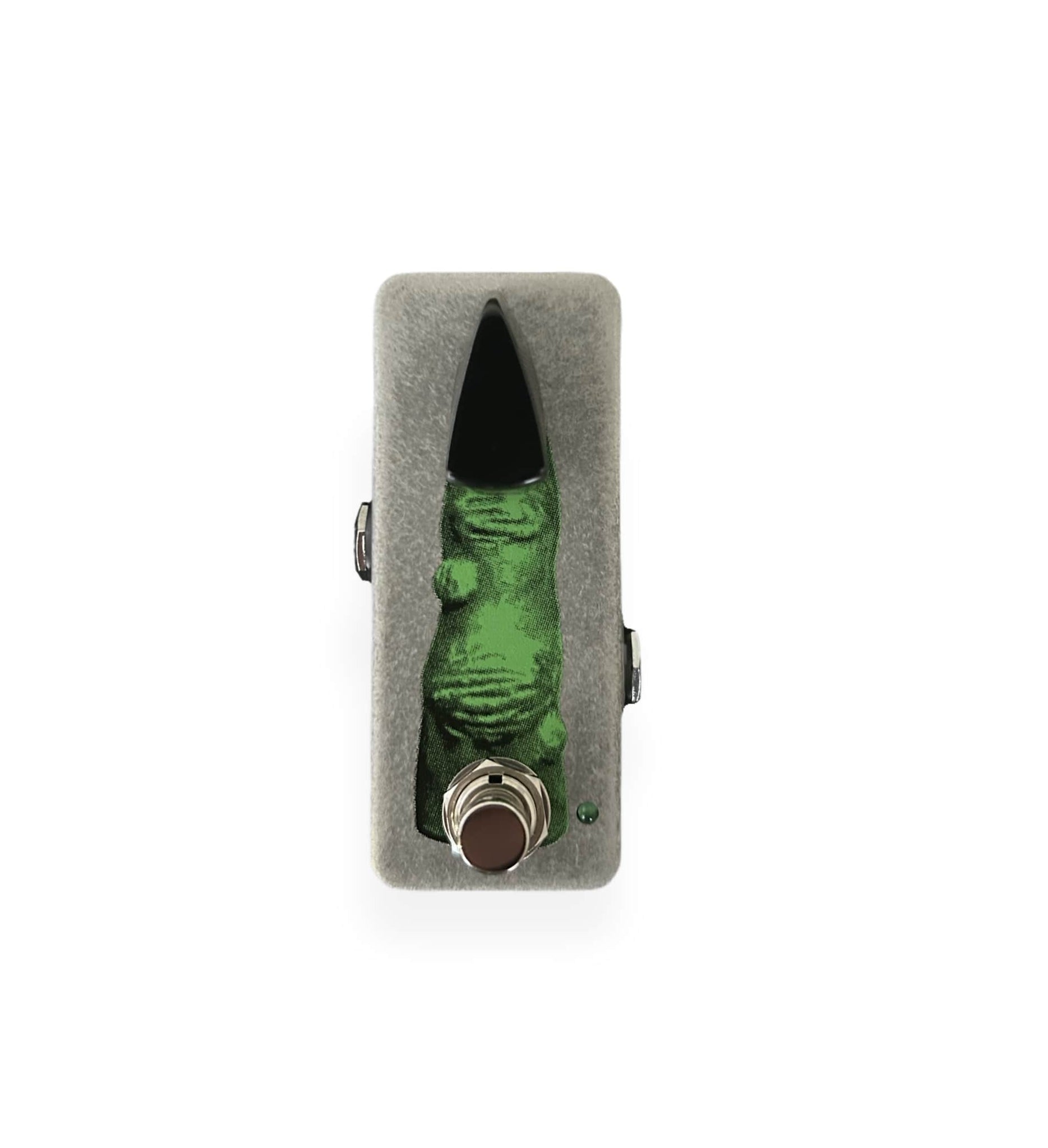

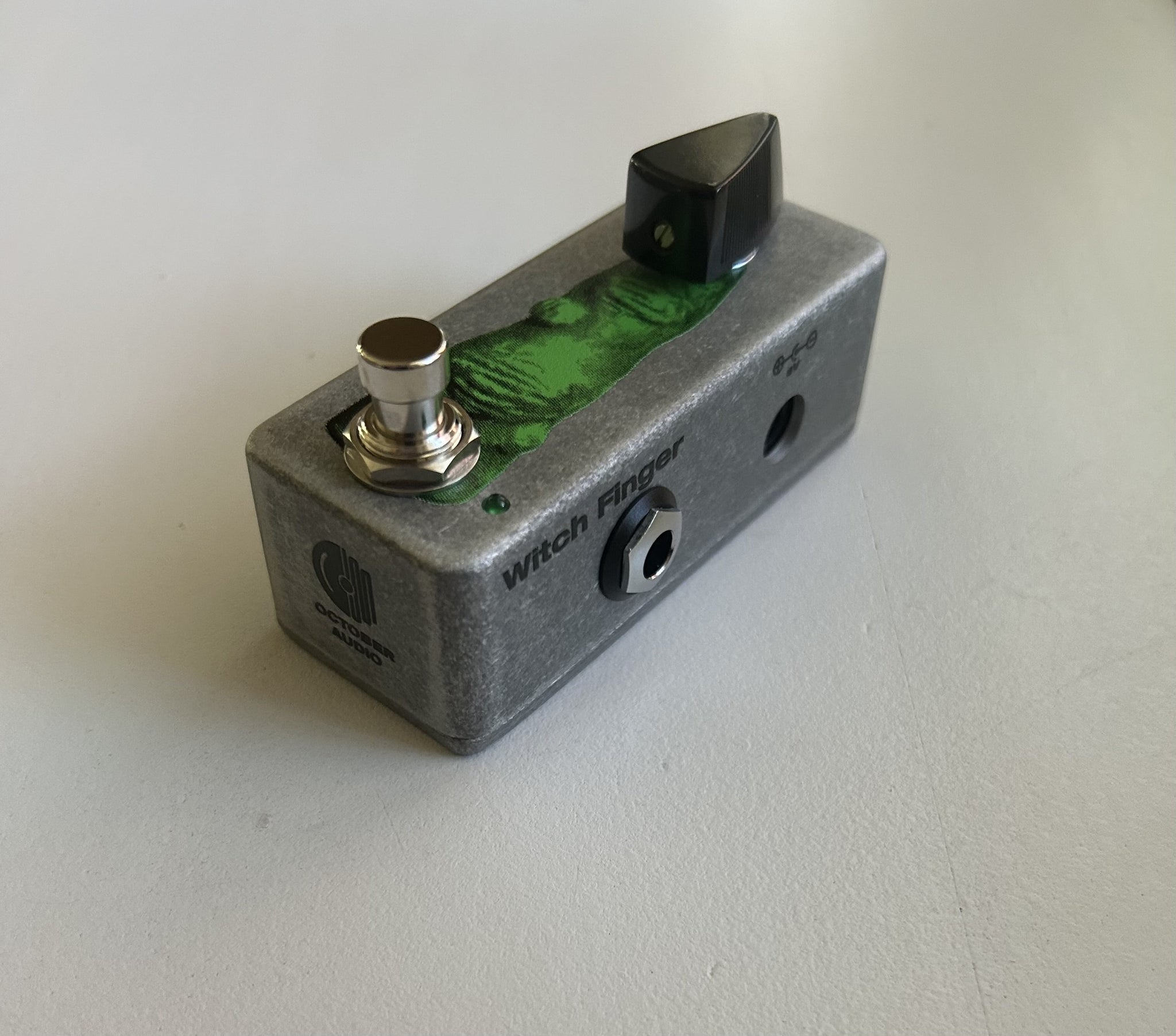

witch finger

$119.00

Nov 22 update- In stock soon!

MAGIC TONE ENHANCER

EFFECT: boost/drive

Like a mini amp in your chain.  Witch finger is a unique gain device that excels at riding the edge of overdrive.

INSPIRATION:  We wanted a boost that could transition gracefully from clean to dirty tones.  The resulting op amp-based gain circuit is the engine in the Witch Finger series..

CIRCUITRY:    A nonlinear amplifier.  Volume increases logarithmically, starting from just over unity to about 10db before soft-clipping drive starts for another 5db of boost.  Symmetrical diode clipping is finely layered in until the end of the knob rotation, where light overdrive appears exponentially- it reaches a breaking point and drive dominates.  There is simultaneous control of gain and diode clipping using a dual potentiometer.

SOUND:  Heft & dimensionality.  With the knob all the way to the left, the Witch Finger can be used as a line driver to maintain signal chain integrity.  Try it at the front or end of your signal chain for a tone sweetener.  The left side of the control knob is clean gain- here the clipping section is inactive.  The cleaner boost is useful to drive the frontend of an amp or stacked into another dirt pedal.  From about 1 o'clock onward, the soft clipping is engaged and provides subtle amounts of grit and character as you dig into strings.  Towards the very end of the knob rotation, overdrive increases rapidly, as the clipping section is fully engaged.  Note:  If placed in front of an old school fuzz, like a fuzz face, you may lose the cleanup effect.

VERSION NOTES:  Version 2 graphics recall novelty ads found in the back of retro comic books. This circuit was featured in our 1st boost pedal, the now discontinued nvmbr gain.

WITCH FINGER?  The Davies knob serves as our witch's fingernail, completing the design reminiscent of Halloween finger adornments.

HOT TIP:  Want the fingernail to line up to your sweet spot?  Set the knob where you prefer, loosen the knob screw and move it to overlap with the fingernail position, then retighten!

Austere design, esoteric nomenclature.



Customer Reviews

Based on 1 review Write a review
  • 9V center negative power supply, no battery
  • Current draw: 3mA
  • dimensions:  3.63 x 1.50 x 1.88 in
  • Knob controls gain and clipping simultaneously
